3 Pin Right Angled Field Wireable M8 Connector PA66 GF Contact Carrier IP67 Rated Female
| Connector Technical Data |
| Model Number | MB03A2RWAB |
| Connectors No. | 3Pin,4Pin |
| Rated Current | 4A |
| Rated Voltage | 60V |
| Impulse Voltage | 1500V |
| Locking System | M8 × 1.0 screw |
| Tightening Torque | Recommend:0.2Nm |
| Connector Body | PA66,GF |
| Rated Temperature | Flexible:-25 ℃,+80℃ ；Static:40℃,+105℃ |
| Contacts Plating | Au(Gold) |
| O ring | FKM, NBR |
| Insulation resistance | ≥100MΩ |
| Contact resistence | ≤5MΩ |
| Termination | Screw fixing |
| Contact carrier | PA66, GF |
| Pollution degree | 3 |
Description

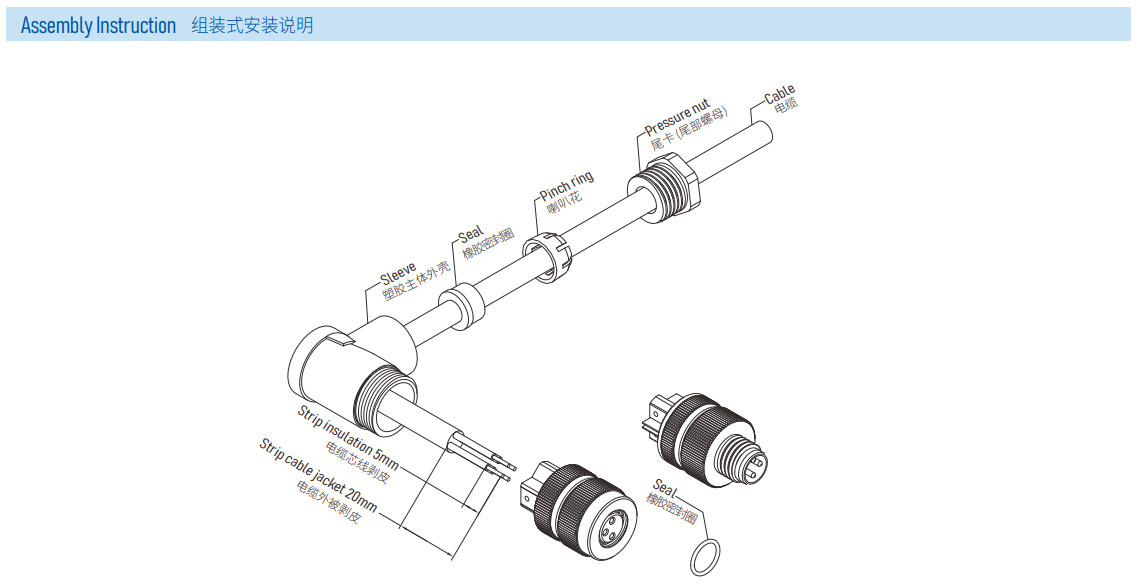

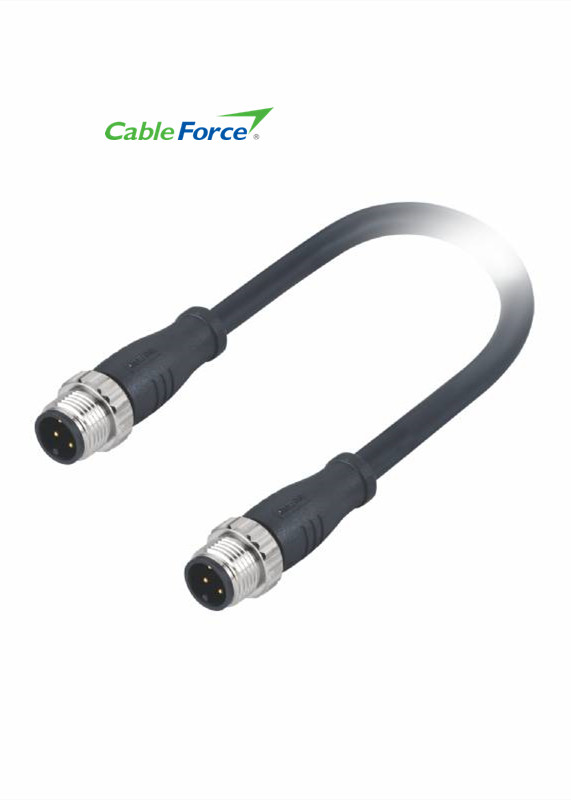

The M8 family can be found in many applications such as small sensors ,actuators.Cableforce M8 Series connectors are ideally suited for industrial control networks where small sensors are required.Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts,Field attachable/mountable connector is also available for your choice.M8 Field wireable connector for on-site assembly,extremely high winding and unwinding strength,M8 extension cable or Flying leads(open cable ends),with good oil resistance/ chemical resistance.
Packing Service
Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Always double confirm drawing before production .
Using Best in Class Materials
Cableforce Advantages
1. 100% high quality, all failed parts get free warranty within 30 days after received.
2. Accept 10 years warranty upon customer requirement.
3. Repairs parts are available within 10years; we will inform the EOL products to you from time to time
4. Free LOGO on the surface of over-molded connectors can be provided upon customer requirement.
5. Unique designed package for you can be provided upon customer requirement.
6. Special feature and service can be provided upon requirement.
Cableforce Company Profile
Cableforce focuses on the industrial connectors and cable assmebly's reaeach,development,manufature and sales.Whether the requirements are large or small,complex or simple,Cableforce has the experience and skills to get the job done right.With the efficient modern machinery and instruments of cable and connector‘s development and production,enable us supplying customers with 2D,3D designing,tooling & prototyping,cable cutting,soldering,crimping,epoxy resin injection,plastic injection molding,printing and testing.
